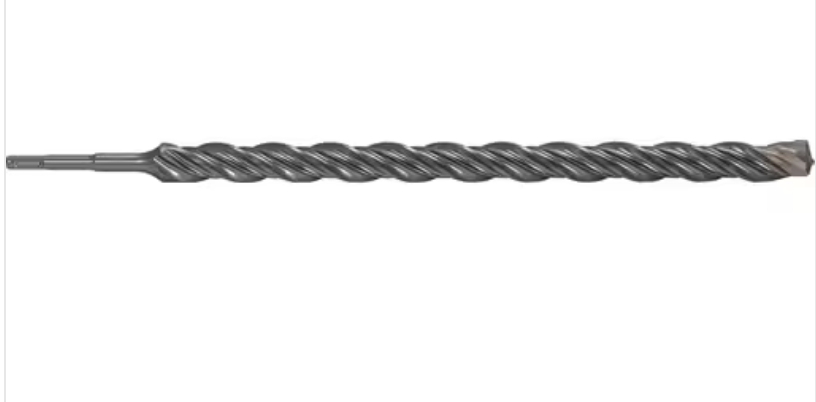

BTI Drill SDS+ 20x540/600

Anchor and breakthrough drilling in concrete, masonry and natural stone

Suitable for all hammer drills with SDS-plus mount

• Very long service life in concrete

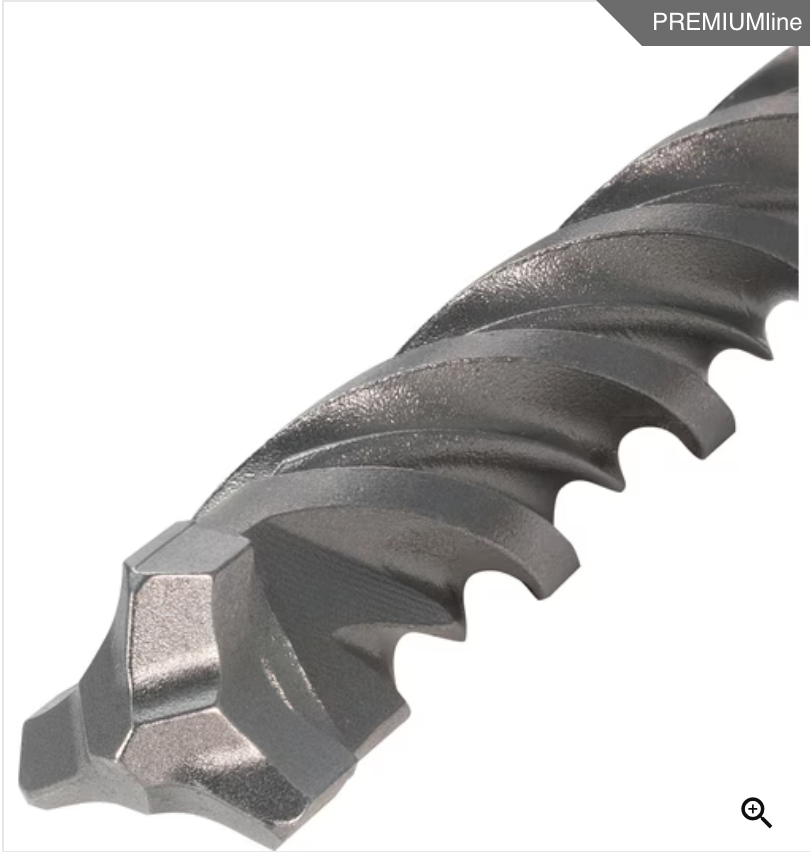

  One-piece solid carbide head (Ø 5 mm - Ø 20 mm) with optimized transition to spiral groove leads to a very good connection between the carbide head and the drill body
  2 different Ø-specific spiral designs combine the performance of the carbide head with a fast drilling powder removal, for a very good drilling result
• Very long service life in reinforced concrete
  Unique 3-cutter design combines the advantages of a multi-cutter and a 2-cutter - long service life in concrete and high reinforcement resistance, reduced vibration with simultaneously high drilling speed
• 2 different spiral designs
  Up to Ø 10 mm optimised spiral with rounded edges and from Ø 10 mm 2-divided reinforced spiral for even better drilling powder tartan sport
• Triple spiral Ø 5 mm - Ø 8 mm
  Reinforced cross-section with very good fit to the solid carbide head
  Concave shape (inwardly curved) increases core stability by 15% and ensures a quick removal of drilling powder
• 2-part spiral Ø 10 mm - Ø 28 mm
  Up to 36% increased spiral volume with a direct transition from solid carbide head to spiral for optimized dust transport and high drilling speed
  Weight reduction by up to 20% for optimized impact transmission of the hammer drill
• Safe and practical
  Circular bores for safe anchoring (e.g. for dowels)
  Wear marking ensures dimensional bores
  Centering point for precise point drilling and optimum drilling
