BMS Building Material Supplies Malta
Lever Clamps
Lever Clamps
Regular price
€0.60 EUR
Regular price
Sale price
€0.60 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

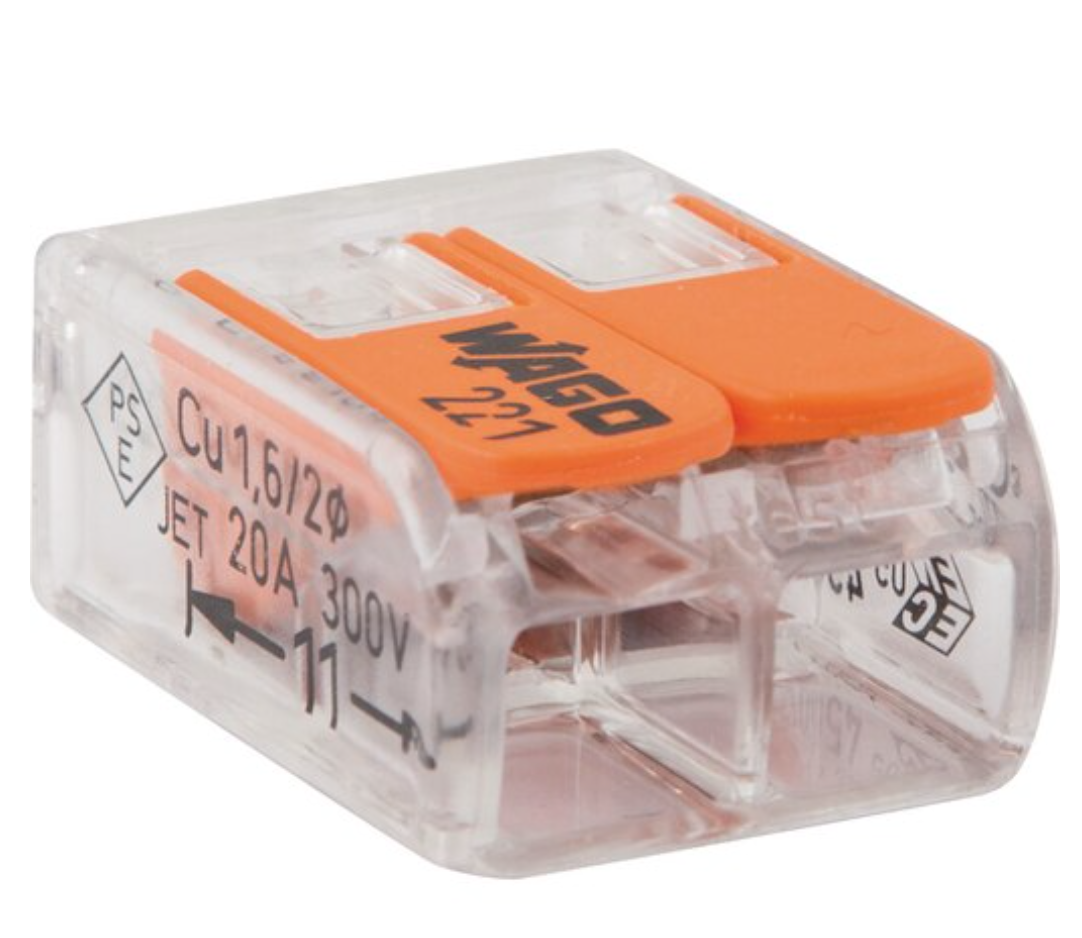

1. Lever clamp with two clamping points
Product Code: 9076975
Details;
Number of clamping points: 2ST
PU/ST: 100
Properties
-
For clamping single-wire, multi-wire and fine-wire conductors
-

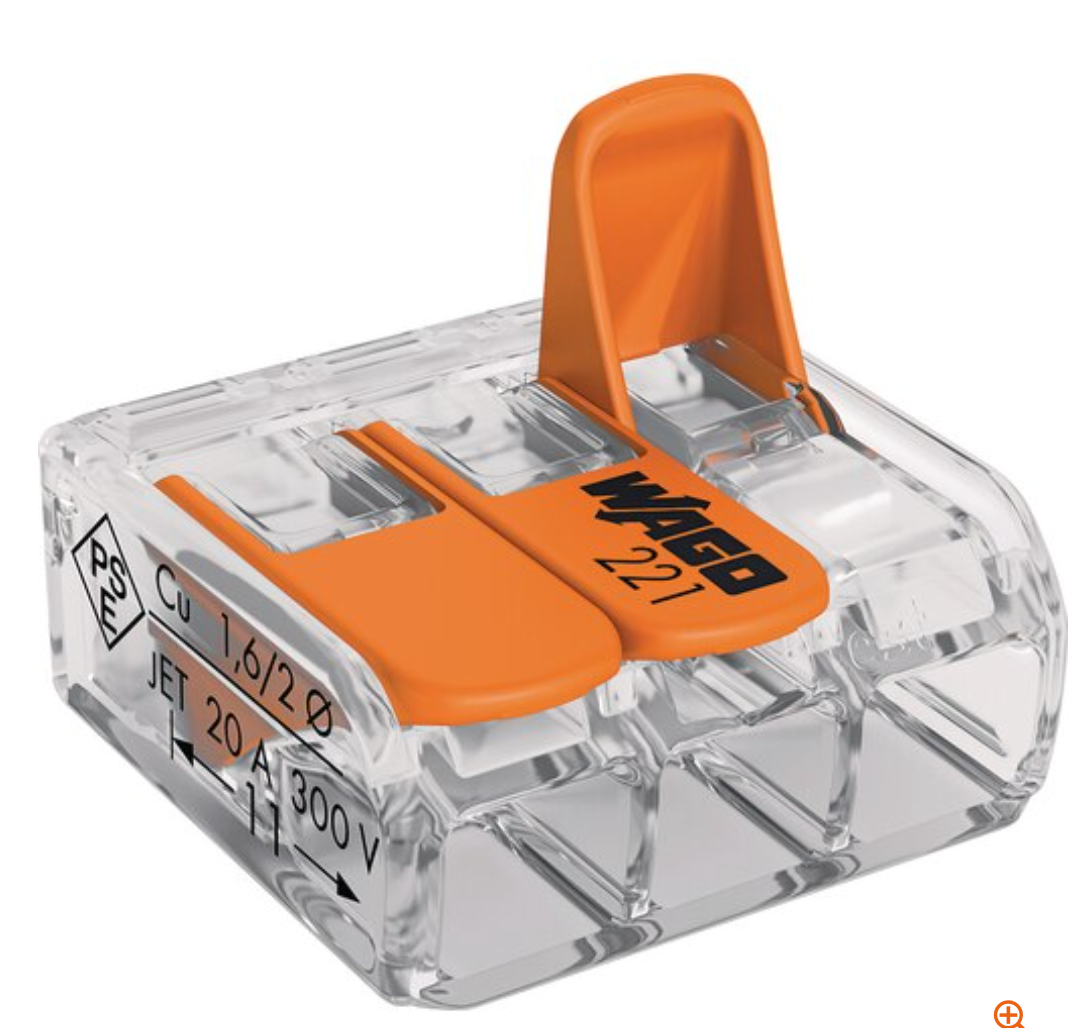

Easy lever opening
-
Introduction of wires without upsetting
-
Easy dismantling of the connection
-
-
Large clamping area
-
Fine-stranded conductors: 0.14 mm² - 4 mm²
-
Single and stranded conductors: 0.2 mm² - 4 mm²
-
-
Easy assembly even with limited space
Technical specifications
| Clamping area | 0.14-4 mm² |
| Clamping area single or multi-stranded conductors, up to | 4 mm² |
| Rated current | 32 A |
| Rated voltage EN | 450 V |
| Stripping length | 11 - 11 mm |

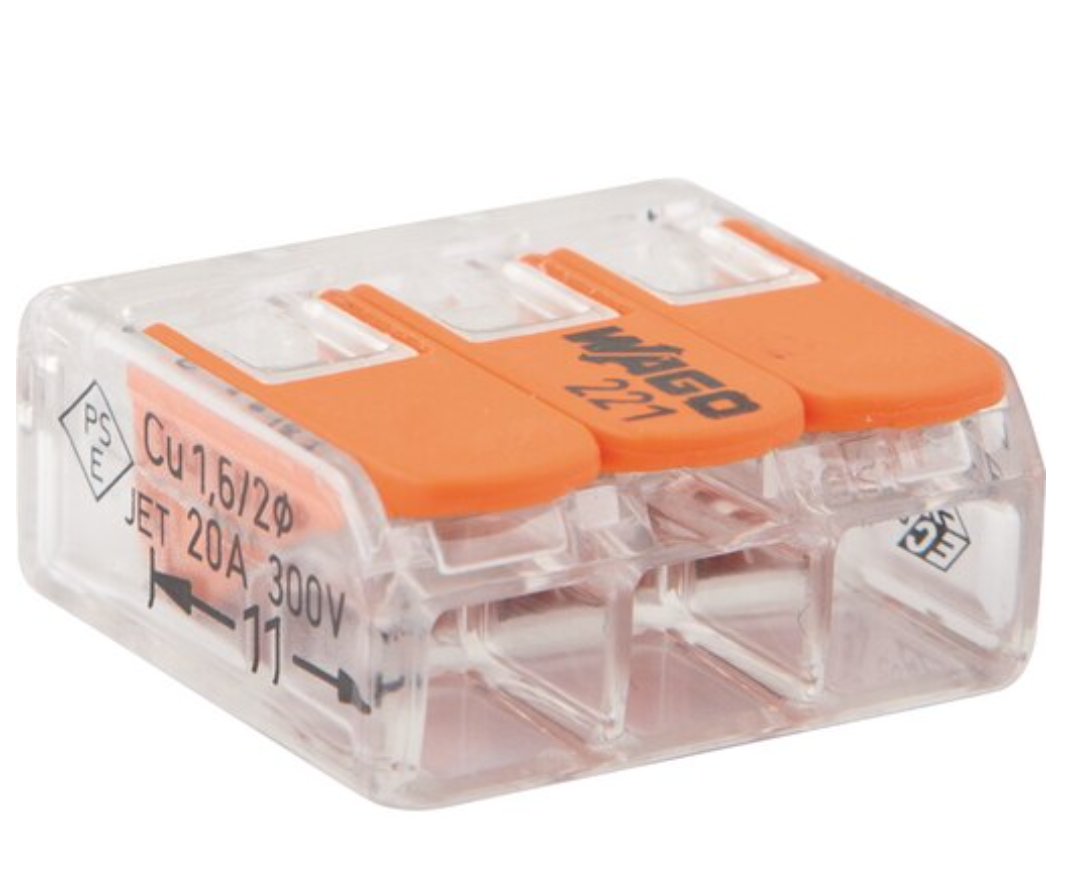

2. Lever clamp with three clamping points
Product code: 9076976
Details;
Number of clamping points: 3 ST
PU/ST: 50
properties
-
For clamping single-wire, multi-wire and fine-wire conductors
-
Easy lever opening
-
Introduction of wires without upsetting
-
Easy dismantling of the connection
-
-
Large clamping area
-
Fine-stranded conductors: 0.14 mm² - 4 mm²
-
Single and stranded conductors: 0.2 mm² - 4 mm²
-
-
Easy assembly even with limited space
Technical specifications
| Clamping area | 0.14-4 mm² |
| Clamping area single or multi-stranded conductors, up to | 4 mm² |
| Rated current | 32 A |
| Rated voltage EN | 450 V |
| Stripping length | 11 - 11 mm |

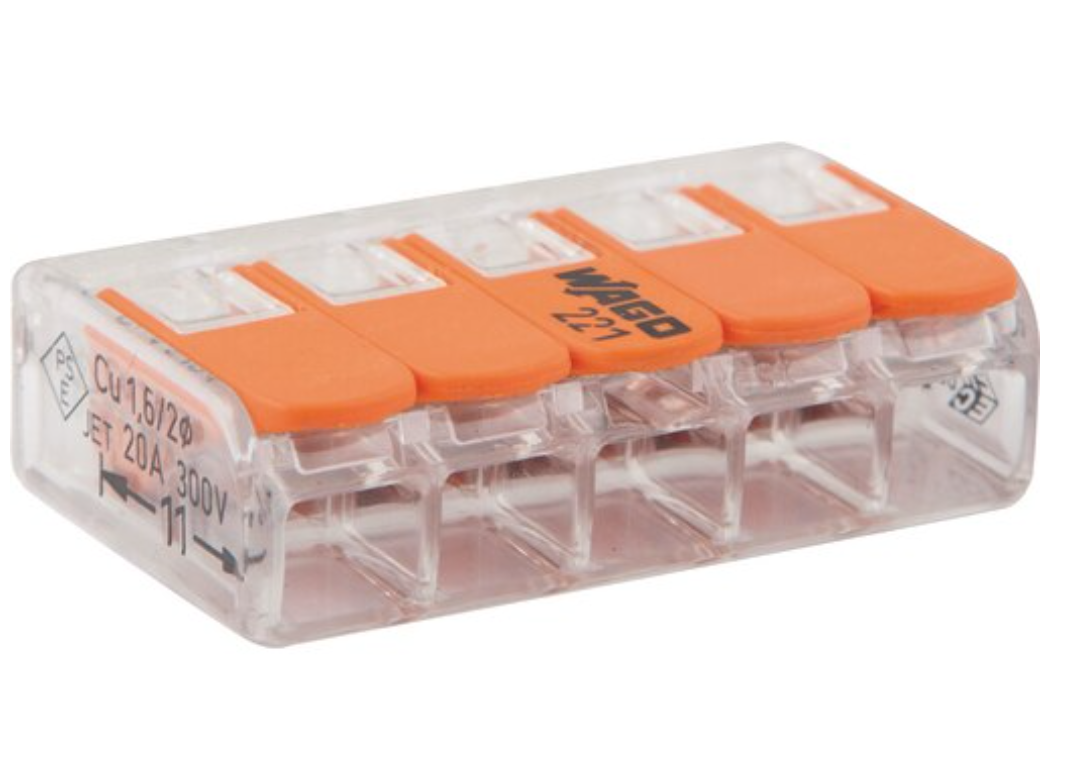

3. Lever clamp with five clamping points
Product Code: 9076977
Details;
Number of clamping points: 5
PU/ST: 25
Properties;
- For clamping single-wire, multi-wire and fine-wire conductors
- Easy lever opening
- Introduction of wires without upsetting
- Easy dismantling of the connection
- Large clamping area
- Fine-stranded conductors: 0.14 mm² - 4 mm²
- Single and stranded conductors: 0.2 mm² - 4 mm²
- Easy assembly even with limited space
Technical specifications
| Clamping area | 0.14-4 mm² |
| Clamping area single or multi-stranded conductors, up to | 4 mm² |
| Rated current | 32 A |
| Rated voltage EN | 450 V |
| Stripping length | 11 - 11 mm |
