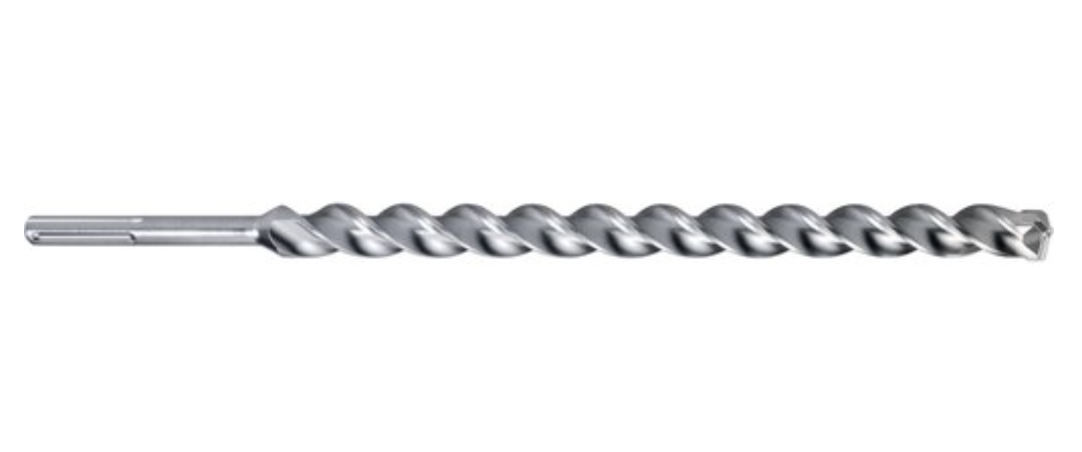

Thriathlon Drill 20MM SDS PLUS/ MAX

Size: Working length 400 mm, Diameter 20 mm, Overall length 470 mm SDS PLUS
Product Code: 9057861

Size: Working length 400 mm, Diameter 20 mm, Overall length 520 mm SDS MAX
Product Code: 9057882

Size: Length 540mm, Diameter 20mm, Overall length 610mm SDS PLUS
Product Code: 9057862

Size: Working length 1200 mm Diameter 20 mm, Overall length 1320 mm SDS MAX
Product Code: 9057884


Details;

Application areas

• For drilling in (reinforced) concrete, masonry and natural stone

Properties

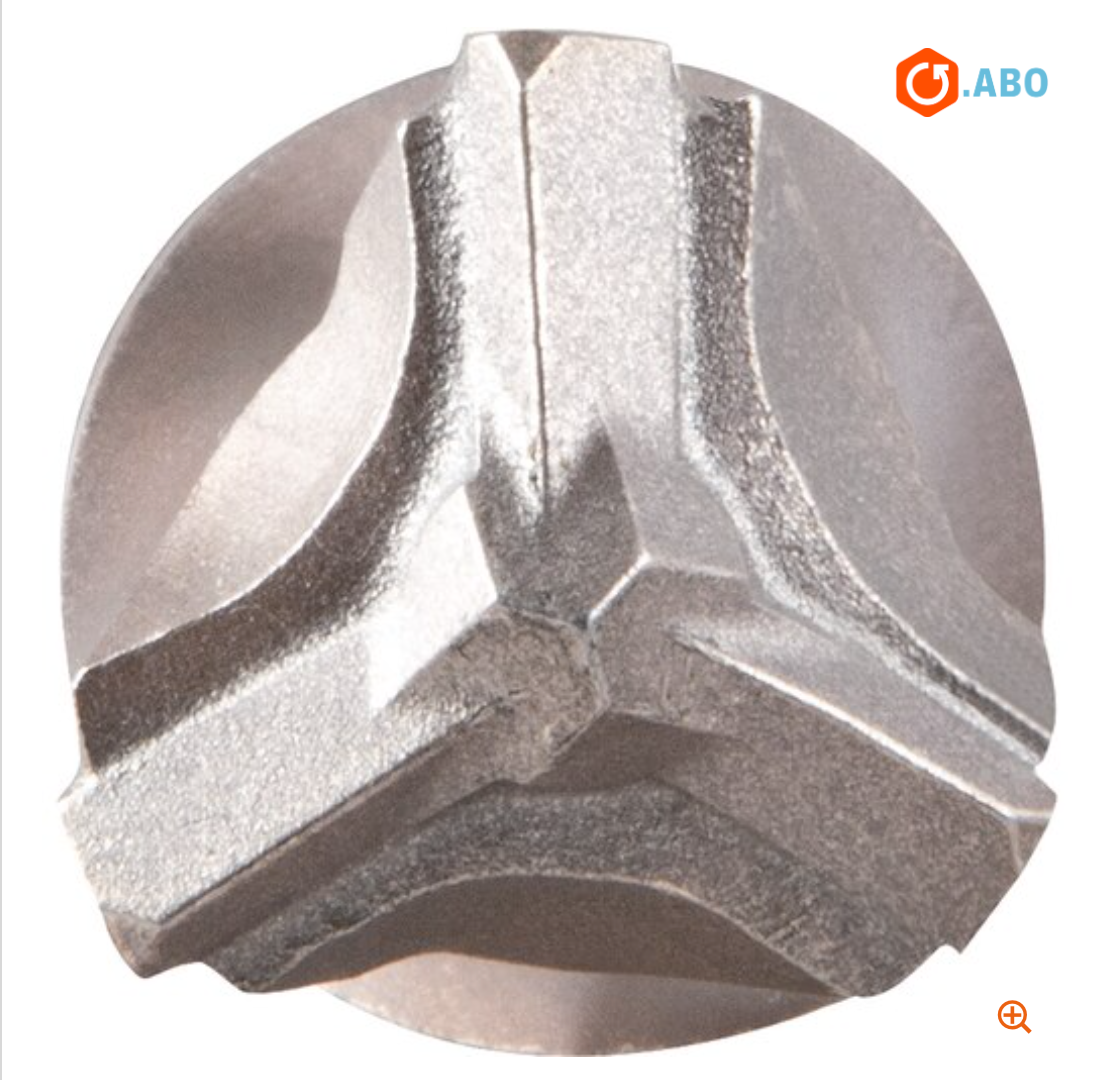

• 3-cutting edge carbide geometry

  • Exactly circular holes, important for dowel fastenings and low-vibration operation for reduced stress on the user

• Short transition from carbide tip to drill spiral

  • Very good removal of drilling dust

• 3 steep, large-volume turns

  • Optimal removal of the drilling dust

  • Counteracts the development of heat in the borehole, reduces frictional resistance and increases the life of the drill

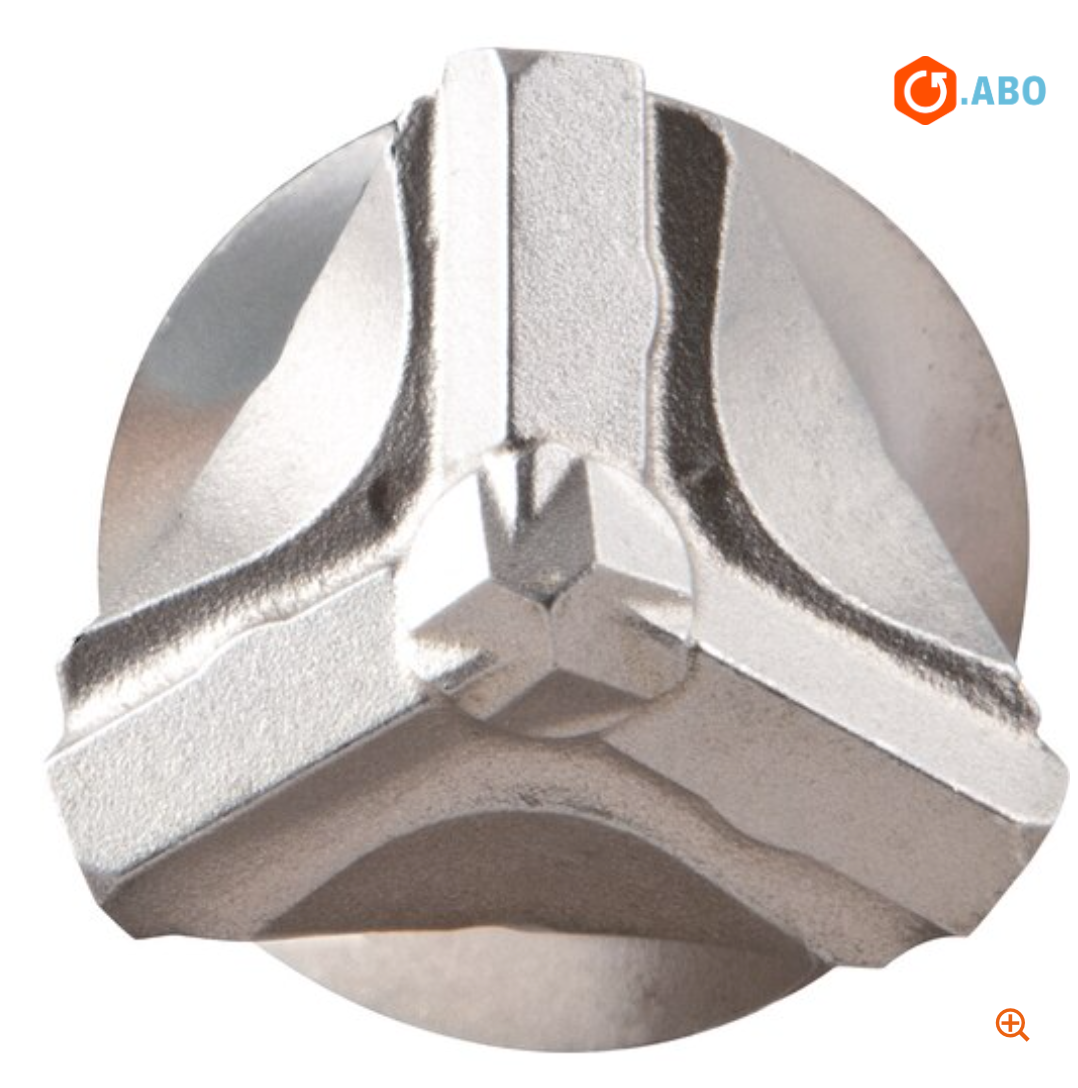

• 150 ° point angle with centre point

  • Provides improved and faster drilling

• Wear mark on the hard metal

  • Produces dimensionally accurate drill holes

• Shot-peened surface of the drill body

  • Reduces wear on the drill flute

• One-piece, welded solid carbide drill head with a diameter of 5 mm - 15 mm

  • Ensures a very good service life, reduced wear and good drilling progress

• One-piece, brazed carbide drill head with a diameter of 16 mm - 28 mm

  • For good power transmission from the hammer drill to the drill

Hints

• When using long drills, it is recommended to start drilling with a short drill of the same diameter!
