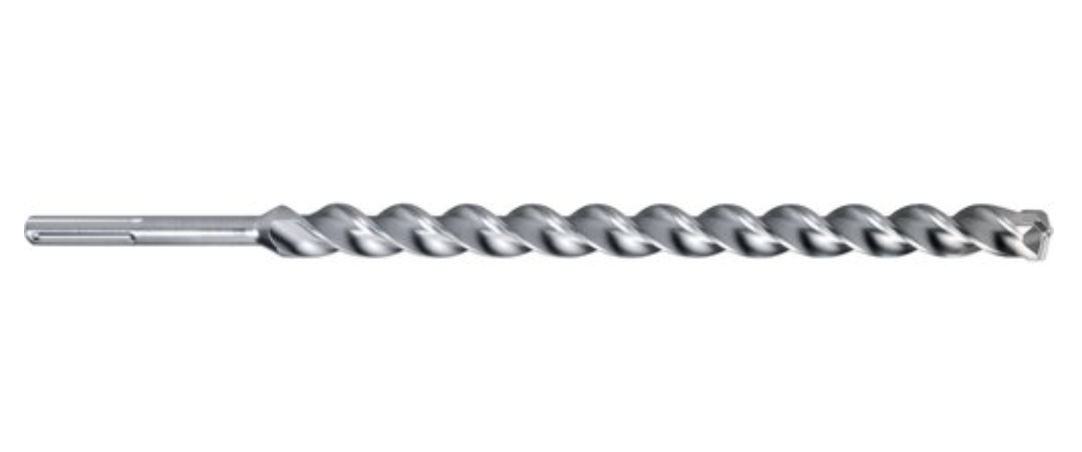

Thriathlon Drill 22MM SDS PLUS/MAX

Size: Working length 200 mm, Diameter 22 mm, Overall length 270 mm SDS PLUS
Product Code: 9057863

Size: Working length 400 mm, Diameter 22 mm, Overall length 470 mm SDS PLUS
Product Code: 9057864

Size: Working length 1200 mm, Diameter 22 mm, Overall length 1320 mm SDS MAX
Product Code: 9057888

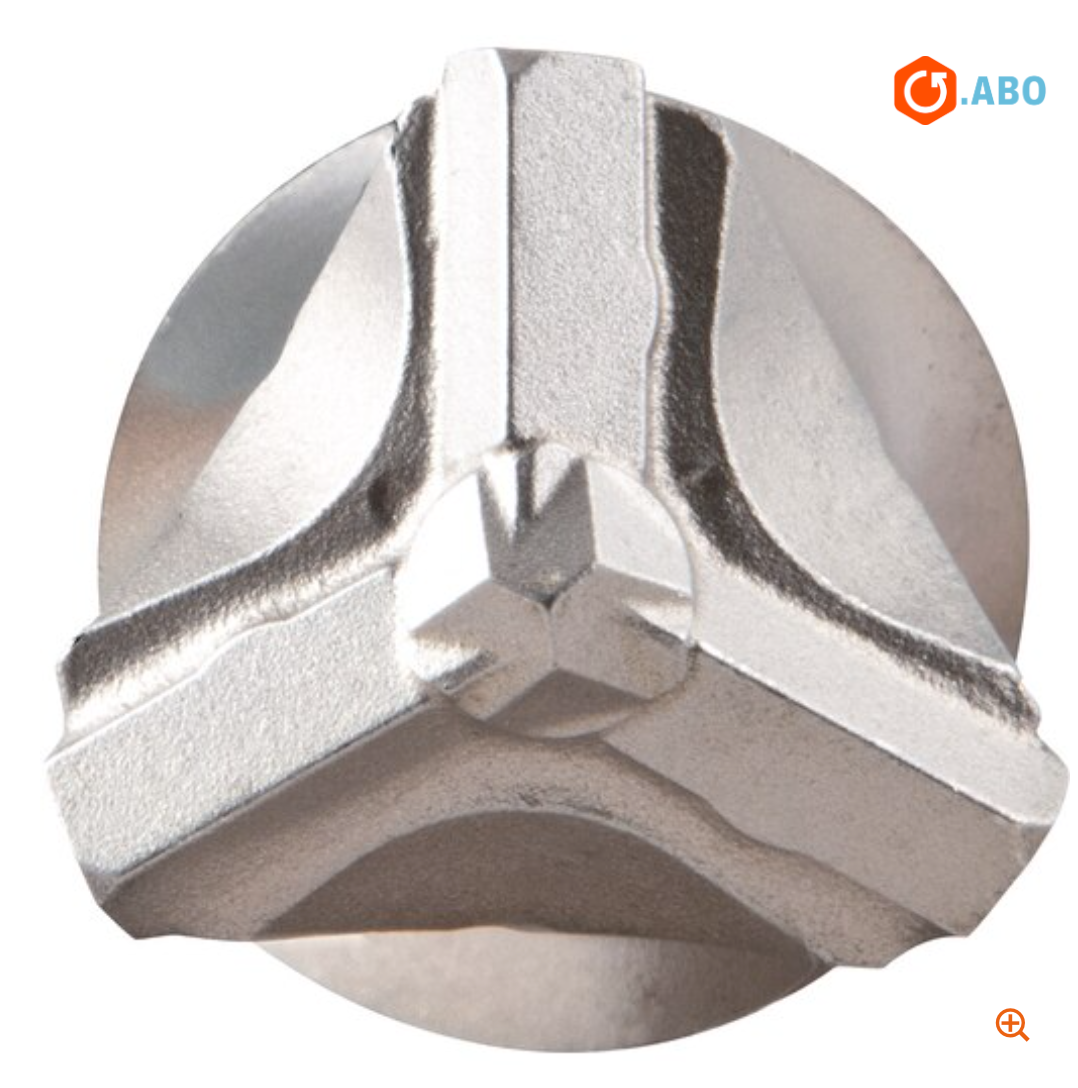

3-cutting edge carbide geometry

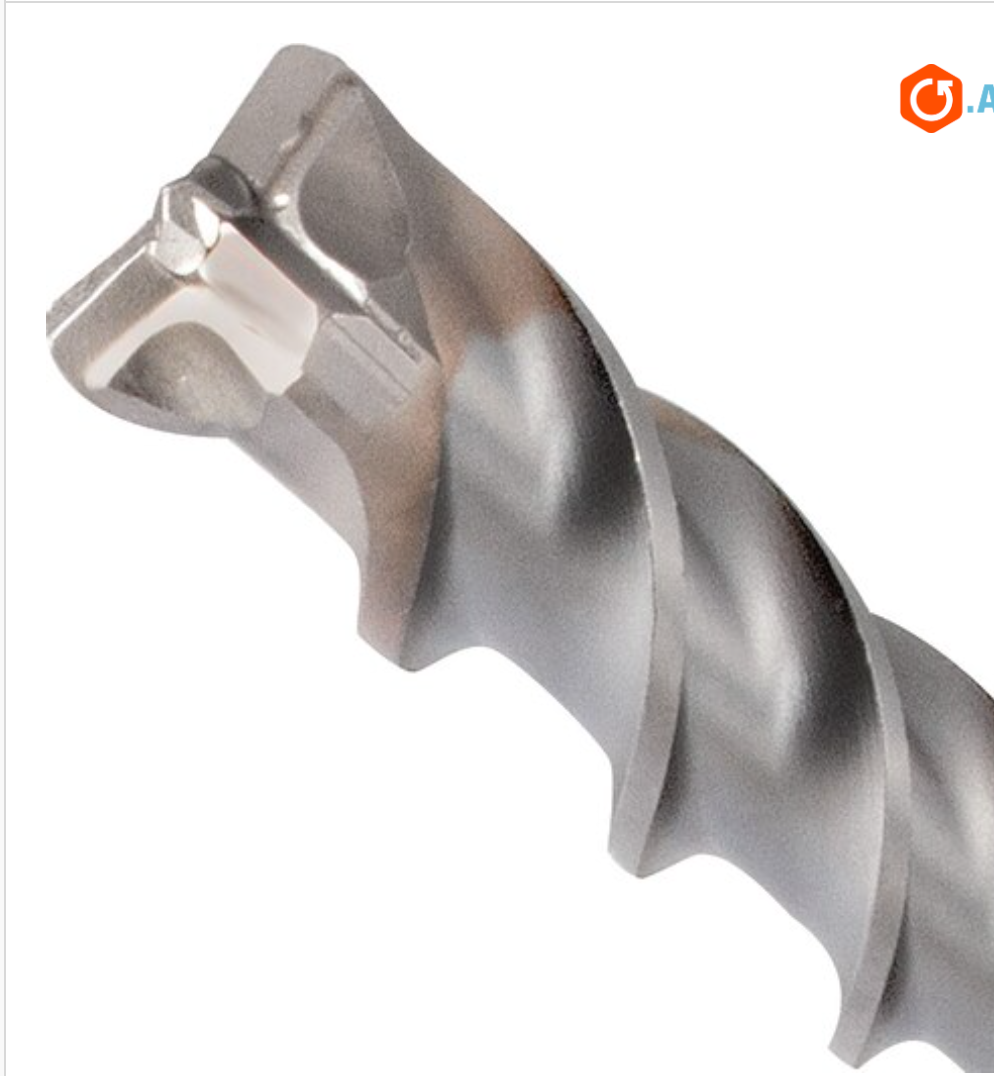

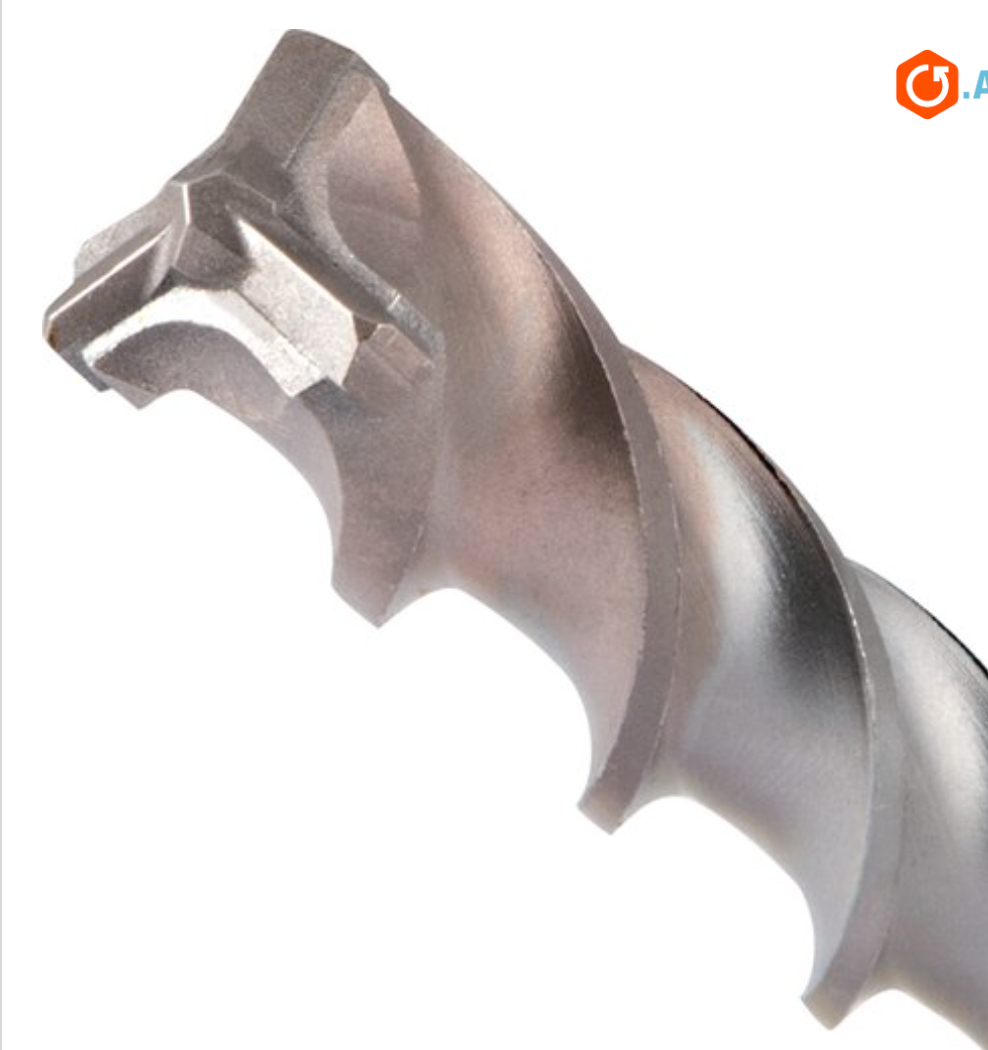

Short transition from carbide tip to drill spiral
Wear mark on the hard metal

Details application areas:

• For drilling in (reinforced) concrete, masonry and natural stone properties 3-cutting edge carbide geometry,

  Exactly circular holes, important for dowel fastenings and low-vibration operation for reduced stress on the user Short transition from carbide tip to drill spiral.

  Very good removal of drilling dust 3 steep, large-volume turns.

  Optimal removal of the drilling dust.

  Counteracts the development of heat in the borehole, lowers the frictional resistance and increases the service life of the drill 150 ° point angle with centre point.

  Provides improved and faster drilling Wear mark on the hard metal.

  Produces true-to-size drill holes Shot-peened surface of the drill body.

  Reduces wear on the drill flute.

  One-piece, welded solid carbide drill head with diameters of 5 mm - 15 mm.

  Ensures a very long service life, reduced wear and good drilling progress.

  One-piece, soldered carbide drill head with diameters 16 mm - 28 mm.

  For good power transmission from the hammer drill to the drill Hints.

  When using long drills, we recommend drilling with a short drill of the same diameter!
