Thriathlon Drill 25MM SDS PLUS/MAX

Size: Working length 400 mm, Diameter 25 mm, Overall length 470 mm SDS PLUS
Product Code: 9057868

Size: Working length 800mm, Diameter 25mm, Overall length 920mm SDS MAX
Product Code: 9057893 or 1005190

Size: Working length 1200 mm, Diameter 25 mm, Overall length 1320 m SDS MAX
Product Code: 9057894 or 1005192

Details;
Application areas;
For drilling in (reinforced) concrete, masonry and natural stone
Characteristics

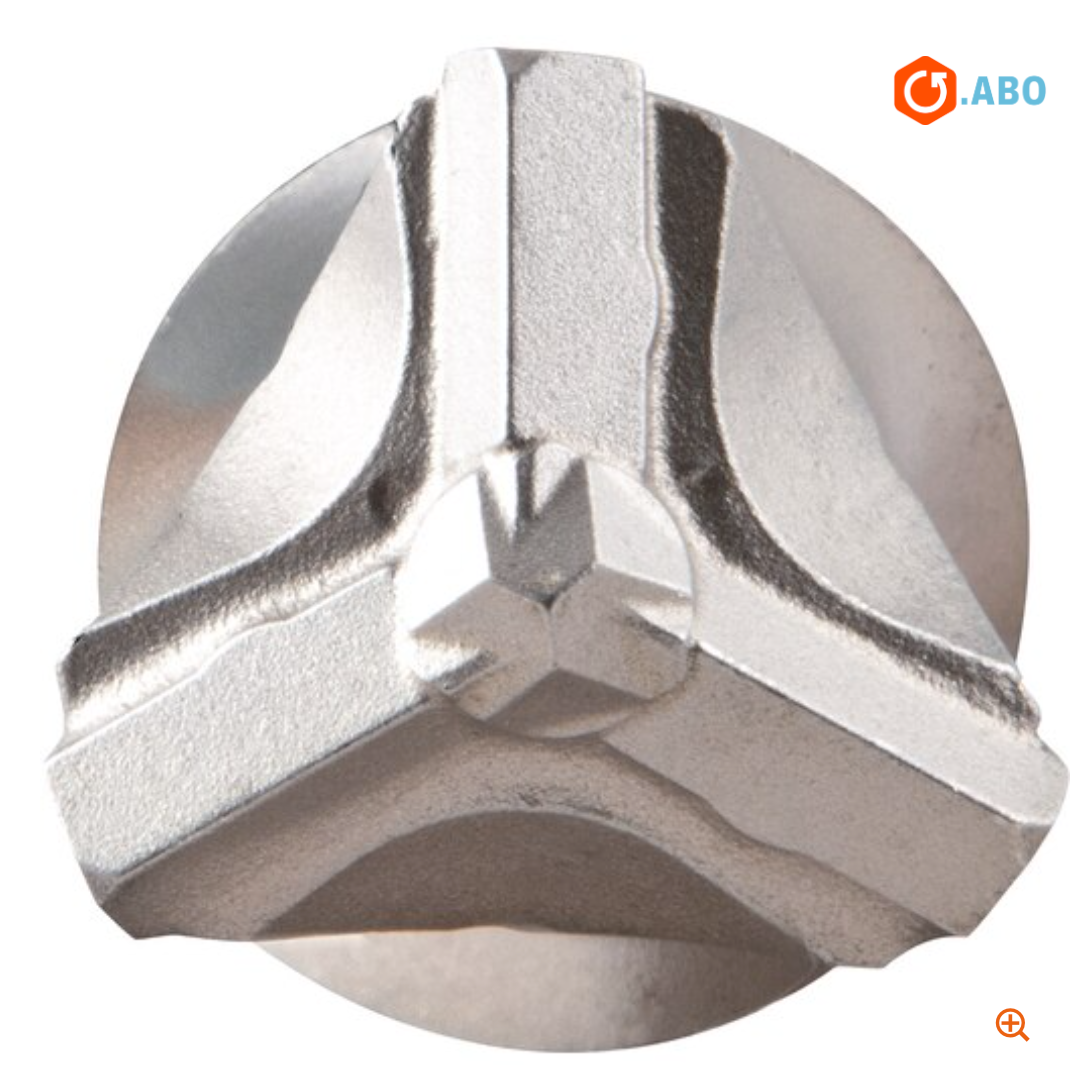

3-edged carbide geometry
Exactly circular bores, important for dowel fastenings and low-vibration operation for reduced stress on the user
Short transition from carbide tip to drill helix
Very good drilling dust removal
3 steep, large-volume turns
Optimum removal of drilling dust
Counteracts heat generation in the drill hole, reduces frictional resistance and increases the service life of the drill
150° point angle with center point
Ensures improved and faster drilling
Wear mark on the carbide
Results in dimensionally accurate drill holes
Shot peened surface of the drill body
Reduces wear on the drill flute
One-piece, brazed carbide drill head with diameters of 16 mm - 28 mm
Provides a very good and direct transfer of energy from the rotary hammer to the drill bit
4-piece brazed carbide drill head with diameters of 30 mm - 42 mm
Stresses that occur when drilling can be better absorbed and the load distributed better

Processing instructions;
Reinforcement hit: Continue working with reduced pressure. The cutting edge geometry of a rock drill is only suitable for drilling reinforcement to a very limited extent.
